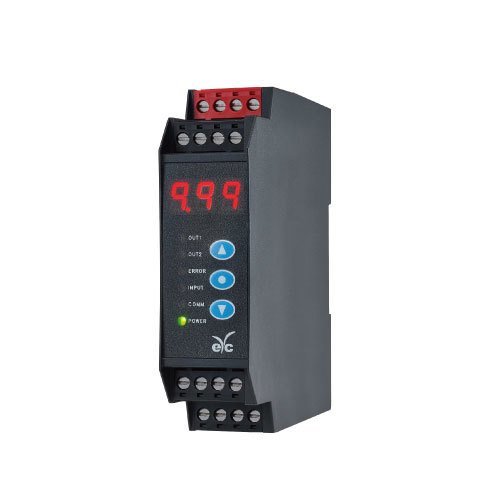

Signal Converter

Description

Display readout：3 Digits(-199 … + 999) / Decimal point : 0 … 2 Place, button
Display：Highlight red LED(7-segment)
Digit height：7.6 mm
Accuracy：0.2%F.S.±1 digital
Sampling time：4 cycle / sec
Response time adjustment range：0.5 … 60 sec
Input : Voltage：0 … 5 V；0 … 10 V；Current : 0 … 20 mA；4 … 20 mA
Output : Voltage：0 … 5 V；0 … 10 V；Current : 0 … 20 mA；4 … 20 mA
Output signal : 1 Analog Output
Load resistance : Current : RL＜500 Ω；Voltage≧10 KΩ
Analogue output resolution : 16 bit
Signal error detection : Yes

Operating environment：-10 …  +60°C；0 … 95%(Non-condensing)
Storage environment：-25 …  +70°C
Power supply：AC 85 … 253 V
Auxiliary power：DC 16 .. 25 V / 23 mA
Insulation voltage endurance：2 KVac / 1 min
Parameter memory type：Flash
Dissipated power：5 W
Isolation：Power supply / Analog input / Analog output / RS-485
IP rating：IP20
Electrical protection : ■ Polarity protection ■ Over-voltage
Certification：CE
Housing：ABS fire-proof class(UL94V-0)
Dimensions(HxWxD)：99.5 x 25.5 x 104.2 mm
Weight : About 158 g

Make: EYC Taiwan
